Drainable Floor Hatches / Gutter-frame Floor Doors

A-Mezz Gutter-Framed Floor Doors are Built for Rain

Our Drainable Floor Hatches are designed with an integrated gutter in the frame to collect water and discharge at a welded 1-1/2" drain coupling.

Pedestrian (Foot Traffic) Loads

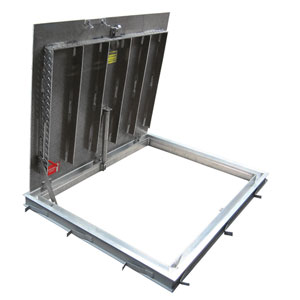

Photo of a drainable floor door for pedestrian loads

The pedestrian series is designed for foot traffic or hand cart traffic. It features a diamond plate cover and has a 300 pound per square foot load rating. It is only available for a cast-in installation in a fresh pour of concrete. All of the hardware - including the hinges, spring tubes, hold open arm, and latch are 316 stainless steel for a long service life. Available finishes are: mill finish aluminum with powder coat gray frame, steel with powder coat gray finish, and 304 stainless steel.



Single door standard sizes:

  • 24" x 24"
  • 30" x 36"
  • 36" x 36"
  • 42" x 42"
  • Custom sizes are available for any dimension between 24" x 24" up to 42" x 42"

Double door standard sizes

  • 48" x 48"
  • 48" x 72"
  • 60" x 60"
  • Custom sizes are available. Contact us for details.

H20  Loads

Photo of drainable floor hatch designed to take H20 rolling loads

Our Drainable H20 Load Floor Hatches have the same specs as the pedestrian drainable floor hatches except that they are designed for off street, infrequent H20 rolling loads. These excel in locations where runoff getting into your opening is a concern.

Single door standard sizes:

  • 24" x 24"
  • 30" x 36"
  • 36" x 36"
  • 42" x 42"
  • Custom sizes are available for any dimension between 24" x 24" up to 42" x 42"

Double door standard sizes

  • 48" x 48"
  • 48" x 72"
  • 60" x 60"
  • Custom sizes are available. Contact us for details.
