Aluminum Roof Hatches

DOUBLE DOOR ALUMINUM ROOF HATCH

Roof Hatch Aluminum Two Doors

The MEZZ RHA roof hatch is manufactured from aluminum to ensure years of dependable use, even in most extreme weather conditions. The roof hatch lids are mounted on a 12" curb with cap flashing to ensure against leakage. Mezz roof hatches come standard with compression springs, zinc plated steel hardware, and insulation in the cover and at the curb perimeter.



Aluminum Roof Hatch Specifications

Cover & Liner: 11-gauge (0.090") aluminum cover with an 18-gauge (0.040") aluminum liner

Curb: 11-gauge (0.090") aluminum, Optional: 11-gauge double wall curb (curb liner at exterior)

Hinge: Tamper-proof hinge contained within hatch as part of a spring assembly

Latch: Turn handle

Spring: Greased compression springs enclosed in telescopic tubes, which counterbalance the door to require no more than 10 pounds of opening force

Hardware: Zinc coated steel, Optional: Stainless steel

Insulation: 1" thick rigid fiberglass in cover and 1" at curb perimeterMounting Flange: 3½" on a single wall curb, 2½" on double wall curb.

Finish: Mill

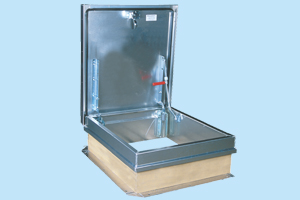

Aluminum Roof Hatch

Roof Hatch Aluminum Side Drawing

Aluminum Roof Hatch Standard Sizes
Single Door Construction Hatches
R/O
Aluminum
R/O
Aluminum
  24"x24"
MEZZ-RHA2424
36"x30"
MEZZ-RHA3630
30"x30"
MEZZ-RHA3030
36"x36"
MEZZ-RHA3636
30"x54"
MEZZ-RHA3054
36"x96"
MEZZ-RHA3696
30"x96"
MEZZ-RHA3096
48"x48"
MEZZ-RHA4848
36"x24"
MEZZ-RHA3624
(RO - Rough Opening Required)
Double Door Construction Hatches
R/O
Aluminum
R/O
Aluminum
48"x60"
MEZZ-RHA4860
60"x96"
MEZZ-RHA6096
48"x72"
MEZZ-RHA4872
72"x72"
MEZZ-RHA7272
48"x96"
MEZZ-RHA4896
72"x96"
MEZZ-RHA7296
60"x60"
MEZZ-RHA6060
96"x96"
MEZZ-RHA9696
60"x72"
MEZZ-RHA6072
(RO - Rough Opening Required)

*NOTE: All units hinge on second dimension (length)

**NOTE: Other sizes are available. Contact A-Mezz with your custom R/O

Roof Hatch Aluminum Double Door Drawing

Our Industrial and Commercial Aluminum Roof Hatches offer the following material options: aluminum curb and lid, galvanized curb and lid, stainless steel curb and lid. Other available roof hatch options include: Aluminum lid only, insulated double wall curb, curb preparation for metal roof deck, sloped curb to match roof slope, mortise lock prep for cylinder, quad leaf construction, window prep for security glazing see through, and stainless steel hardware.

Aluminum Roof Hatch Two Door Side CAD Drawing

Click for Pitch Corrected Layouts

Pitch Corrected Layouts

For more information on the A-Mezz Industrial OSHA compliant roof hatches,
